Installation Method of Overhead Cable Trays

Installing overhead cable trays requires careful planning, proper support, and adherence to electrical codes to ensure a safe and organized cable management system.

Step 1: Plan the Route

Before installation, map out the cable tray path on the ceiling, considering electrical panels, network switches, and other connection points. Ensure adequate clearance from other systems like HVAC ducts or plumbing, and account for future expansion needs. Use a chalk line or laser level to mark the route and support points along the ceiling .

Step 2: Choose the Right Tray Type

Select a cable tray type based on your application and environment:

• Ladder trays: Ideal for heavy cables and good ventilation.
• Perforated trays: Suitable for lighter loads.
• Solid-bottom trays: Protect cables from dust or debris.

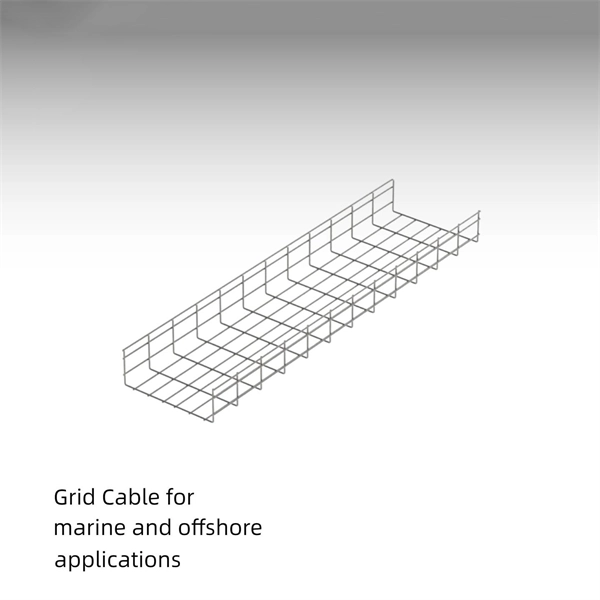

• Wire mesh trays: Flexible routing and easy cable entry . Consider material options like stainless steel or fiberglass for corrosive or outdoor environments.

Step 3: Determine Support Spacing

Install mounting brackets or ceiling struts at regular intervals, typically 1.5 to 3 meters apart, depending on tray type and load. Use threaded rods, anchor bolts, or other appropriate fasteners to secure the supports. Ensure the tray is level and straight to prevent sagging .

Step 4: Install the Cable Tray

• Assemble trays using couplers or splice plates for long runs.
• Handle materials carefully to avoid coating damage.
• Install bends, tees, or risers at marked locations.
• Secure trays to supports and check alignment with a level .

Step 5: Cable Management and Safety

• Follow NEC or local regulations for cable fill ratios (usually max 50%) and grounding requirements.
• Use cable ties or clamps to organize cables within the tray.
• Ensure proper bonding and grounding to prevent electrical hazards .

Step 6: Maintenance Tips

• Inspect trays periodically for sagging, loose fasteners, or corrosion.
• Keep the pathway clear of debris and ensure cables are not overcrowded.
• Plan for easy access to add or remove cables in the future . By following these steps, you can create a safe, organized, and code-compliant overhead cable tray system that supports efficient cable routing and long-term maintenance.
