Working principle of fiber optic terminal junction box

A fiber optic terminal junction box serves as a secure, organized point for terminating, splicing, distributing, and protecting optical fibers in a network.

Core Functions

A fiber optic terminal junction box is primarily used to terminate incoming fiber optic cables, manage splices, and distribute optical signals to outgoing drop cables or patch cords, acting as the interface between feeder fibers and end-user connections in FTTH, FTTB, or other access networks . It ensures stable signal transmission, facilitates testing and maintenance, and provides mechanical and environmental protection for delicate fiber components .

Key Components

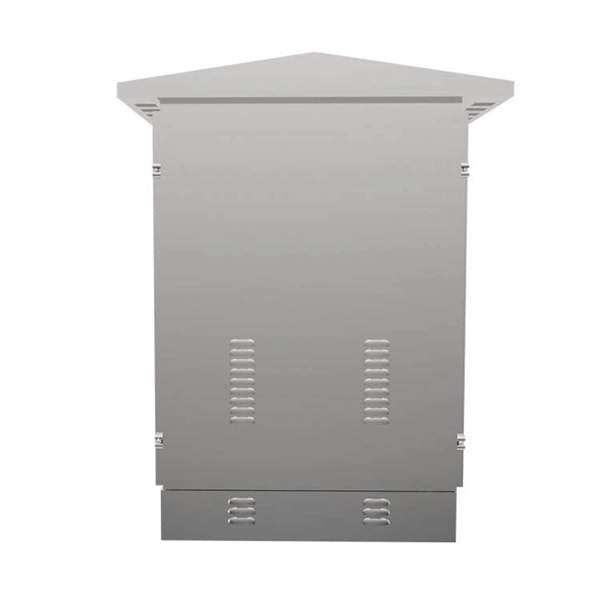

• Housing/Enclosure: Made from durable materials like ABS, PC, or metal, the enclosure protects fibers from dust, moisture, and physical damage. Outdoor models are often watertight and UV-resistant .
• Splice Trays: Organize and protect fusion or mechanical splices, preventing stress or bending of fibers .
• Adapter Plates/Ports: Support SC, LC, FC, or ST connectors for plug-and-play connections to drop cables .
• Fiber Storage: Provides slack management to neatly store excess fiber length .
• Internal Support Components: Include frames, clamps, and trays to secure fibers and maintain proper routing .

Applications

• End-user Termination: Installed near apartments, offices, or building distribution areas to connect subscriber drop cables .
• Signal Distribution: Splits optical signals using PLC splitters or other passive components within the box, reducing the need for additional enclosures .
• Network Protection: Shields fibers from environmental hazards and mechanical stress, ensuring long-term reliability .

Installation Considerations

Fiber optic terminal boxes should be installed close to the work area to minimize cable lengths and signal loss. Proper installation involves securing cables, maintaining bend radius, and ensuring insulation between metal parts and the enclosure . They can be wall-mounted, pole-mounted, or rack-mounted, depending on the deployment scenario . In summary, the fiber optic terminal junction box is a critical network component that centralizes fiber management, protects connections, and enables efficient distribution of optical signals to end users while supporting maintenance and testing operations .
