Layout of Optical Distribution Box Ring Network

An Optical Distribution Box in a ring network organizes fiber splicing, termination, and routing to support bidirectional data flow and network redundancy.

Core Functions of an ODB in a Ring Network

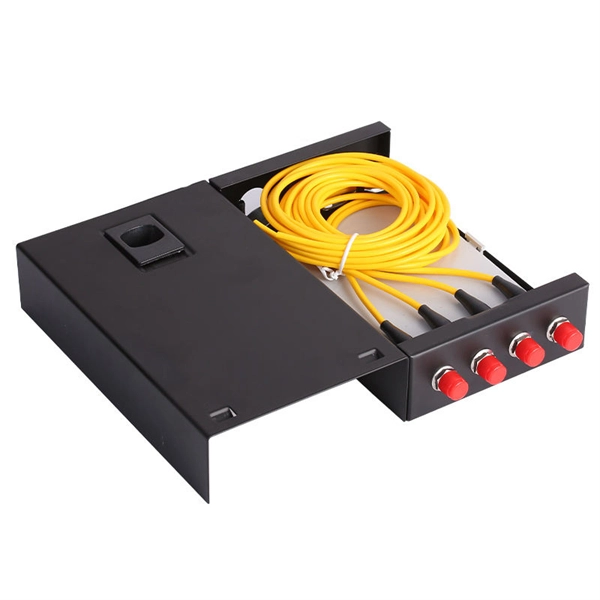

An Optical Distribution Box (ODB) serves as the central point for fiber management, enabling splicing, termination, patching, and protection of optical fibers within a ring topology ( ). In a ring network, each ODB connects to two neighboring nodes, forming a closed loop that allows data to travel in both directions ( ). This ensures network resilience, as traffic can be rerouted if a fiber link fails. Key functions include:

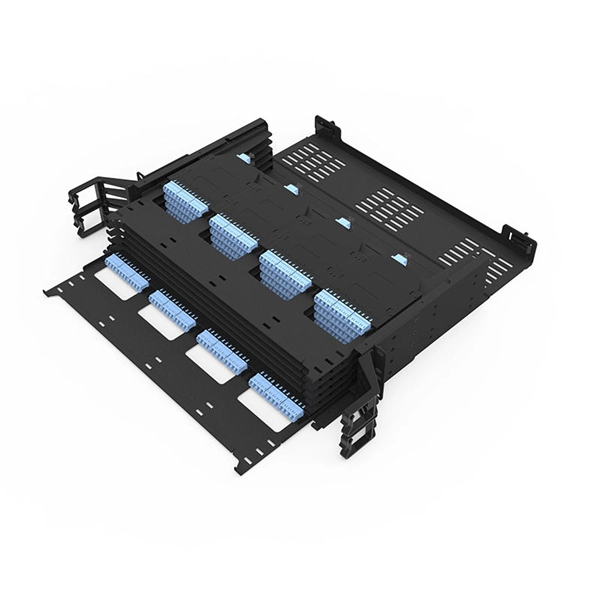

• Splicing Management: Houses splice trays for fusion or mechanical splices, maintaining proper slack and bend-radius compliance ( ).
• Fiber Termination: Provides adapter panels (LC, SC, MPO/MTP) for connecting patch cords to active equipment.
• Cable Routing and Slack Management: Organizes incoming and outgoing fibers, ensuring easy access and minimal stress on cables.
• Protection & Reliability: Shields fibers from environmental damage and mechanical stress, critical in industrial or outdoor deployments.

Typical Layout in a Ring Network

1. Incoming and Outgoing Fibers: Each ODB receives fibers from the previous node and sends fibers to the next node, maintaining the ring loop ( ).

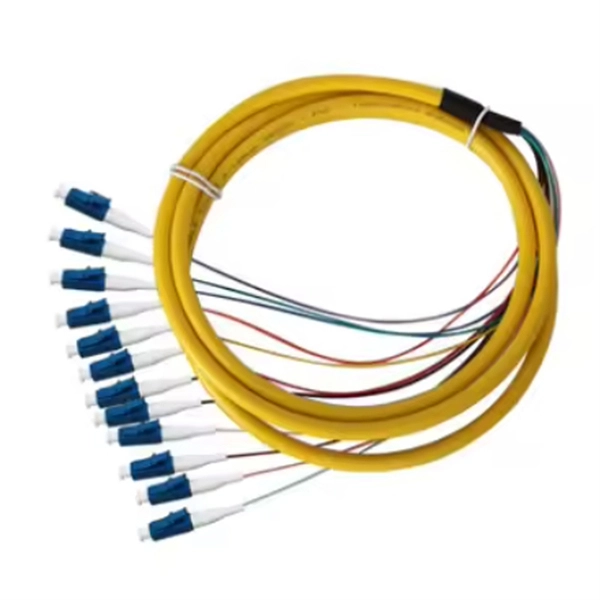

2. Splice Trays: Incoming fibers are spliced to pigtails or distribution fibers within trays, allowing for organized connections and future expansion.
3. Patch Panels: Terminated fibers are routed to patch panels, enabling flexible cross-connections to switches or other network devices.
4. Redundant Paths: In a ring, fibers are often duplicated to provide bidirectional redundancy, ensuring that if one path fails, traffic can flow the opposite way ( ).
5. Labeling and Documentation: Each fiber and port is clearly labeled to simplify maintenance and troubleshooting.

Example Configuration

• Core Switch Connection: The ODB at the main node connects to the core switch via patch cords.
• Access Switch Connections: Other ODBs in the ring connect to access switches, each with at least two fiber links (primary and secondary) to maintain redundancy.

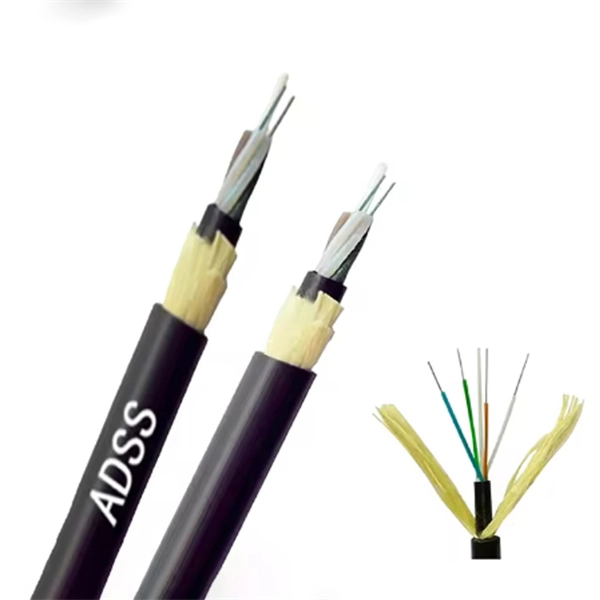

• Fiber Type: Typically, OM4 or OS2 fibers are used, with 12-core or 24-core cables depending on network capacity ( ).
• Port Allocation: Each ODB may allocate ports for ring continuity, client access, and future expansion.

Best Practices

• Maintain slack loops for future re-routing or repairs.
• Use ruggedized ODBs in outdoor or industrial environments.
• Implement ring protection protocols to prevent broadcast storms and ensure fast failover ( ).
• Plan for scalability, allowing additional nodes or fibers to be added without major reconfiguration. By combining structured fiber management, clear labeling, and redundant connections, an ODB in a ring network ensures high reliability, easy maintenance, and seamless network operation.
