Principle of Singapore Photovoltaic Distribution Box

A PV distribution box in Singapore manages and protects the flow of electricity from solar panels to inverters and the grid, combining circuit protection, surge protection, and monitoring in a single unit.

Working Principle

A photovoltaic (PV) distribution box, also known as a PV combiner box or DC distribution box, serves as the central hub for solar energy systems, collecting electricity from multiple solar panel strings and directing it safely to inverters or the AC grid . Each input from a solar string is connected through protective devices such as fuses or miniature circuit breakers (MCBs), which prevent overcurrent or short-circuit conditions from affecting the entire system . The PV distribution box also incorporates surge protection devices (SPDs) to safeguard sensitive solar equipment from voltage spikes caused by lightning or grid fluctuations . Internal busbars and terminals provide organized connections, ensuring efficient current collection and minimizing wiring complexity .

Safety and Monitoring

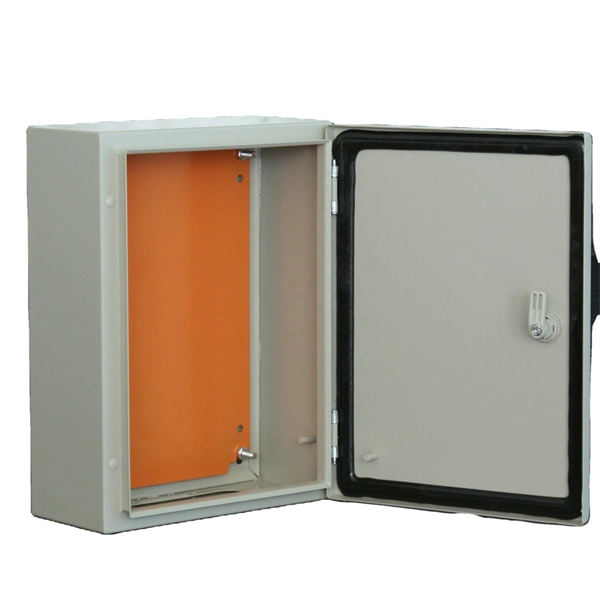

Modern PV distribution boxes include isolation switches that allow technicians to safely disconnect sections of the solar array for maintenance . Built-in monitoring interfaces enable real-time tracking of string currents, voltages, and SPD status, helping operators detect faults early and maintain optimal system performance . The enclosure is weatherproof and constructed from UV-stable, corrosion-resistant materials to withstand Singapore's tropical climate .

Integration in Solar Systems

In Singapore, PV distribution boxes are used across residential rooftops, commercial buildings, and utility-scale solar farms. They consolidate multiple electrical functions—such as combining strings, providing protection, and enabling monitoring—into a single unit, reducing installation time and material costs . The box ensures that DC electricity from solar panels is safely routed to inverters, which then convert it to AC for grid injection or local consumption .

Key Functions

• Current Collection: Combines multiple solar panel strings into a single output for the inverter .
• Protection: Guards against overcurrent, short circuits, reverse polarity, and voltage surges .
• Isolation: Allows safe maintenance and section-wise disconnection .
• Monitoring: Provides real-time data on system performance and fault detection .
• Environmental Protection: Weatherproof and corrosion-resistant enclosure suitable for Singapore's climate . In summary, the principle of a Singapore PV distribution box is to act as a centralized, protective, and monitoring hub that ensures safe, efficient, and reliable operation of solar energy systems, integrating multiple solar strings into a single, manageable output while safeguarding equipment and personnel.
