Fiber optic cable connection SC

Connecting an SC fiber optic cable involves preparing the fiber, inserting it into the SC connector using a push-pull latch mechanism, securing it, and cleaning the end face for optimal signal performance.

Tools and Materials Needed

• Fiber strippers and cleaver for precise cutting
• SC connector kit (single-mode or multi-mode)
• UV-curable glue or epoxy
• UV lamp or curing device
• Crimping pliers and fiber holders
• Anhydrous alcohol and lint-free wipes for cleaning
• Safety gloves and glasses to protect against fiber shards

Step-by-Step Connection Process

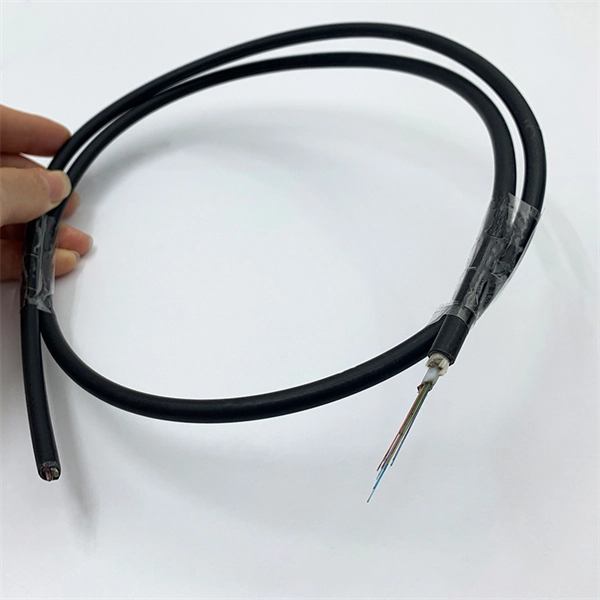

1. Prepare the Fiber: Strip the outer jacket and buffer coating carefully without nicking the fiber. Inspect the fiber for damage or bends .
2. Insert Connector Boot: Slide the SC connector boot and any riveting ring onto the fiber before applying glue .
3. Apply Glue: Inject UV-curable glue into the connector ferrule from the tail end until it slightly overflows. Set the connector aside for curing .
4. Insert Fiber into SC Connector: Push the fiber into the SC connector ferrule. The SC connector uses a push-pull latch mechanism, so ensure the fiber is fully seated and the latch clicks into place .
5. Secure the Connector: Rotate the boot to lock it onto the connector head. Press down the protruding ceramic ferrule end using the dust cap, then slide the outer housing over the connector, aligning any bump marks for proper orientation .
6. Cure and Polish: Use a UV lamp to cure the glue if using UV epoxy. After curing, polish the fiber end face if required to ensure minimal signal loss .
7. Clean and Test: Clean the end face with alcohol and a lint-free wipe. Test the connection using a fiber tester or optical power meter to verify signal integrity .

Additional Tips

• Single-mode vs Multi-mode: Choose the SC connector type compatible with your fiber. Single-mode is for long-distance, multi-mode for shorter distances .
• Avoid Bends and Kinks: Maintain the minimum bend radius to prevent signal loss or fiber breakage .
• Safety First: Always wear gloves and safety glasses to avoid injury from tiny glass shards . Following these steps ensures a reliable SC fiber optic connection suitable for enterprise networks, FTTH installations, or test equipment setups .
