Building a network using a PoE switch

A PoE network can be built by selecting the right PoE switches, planning your network topology, and connecting devices using Ethernet cables that carry both power and data.

Step 1: Choose the Right PoE Switch

When building a PoE network, selecting the appropriate switch is critical. Consider the following factors:

• Power Budget: Ensure the switch can supply enough power for all connected devices. The total power output should exceed the combined requirements of your PoE devices to avoid underpowering .
• PoE Standard: Common standards include IEEE 802.3af (PoE), 802.3at (PoE+), and 802.3bt (PoE++). Choose a switch that supports the standard required by your devices .
• Port Count: Determine how many devices you need to connect. Switches come in 8, 16, 24, or 48 ports .
• Data Speed: Gigabit PoE switches are recommended for modern networks to ensure high-speed data transfer .
• Managed vs Unmanaged: Managed switches allow advanced features like VLANs, QoS, and remote monitoring, while unmanaged switches are simpler and cost-effective for small networks .

Step 2: Plan Your Network Topology

The topology determines how switches and devices are connected:

• Daisy-Chain Topology: Connect switches in series. The first switch connects to the router, and subsequent switches connect to the previous switch. Ensure each switch has sufficient power and bandwidth .
• Star Topology: All switches connect directly to a central core switch or router. This is ideal for smaller networks or when each device needs a dedicated connection .
• Tree Topology: Combines daisy-chain and star layouts, suitable for larger networks with multiple branches. Connect the main switch to the router, then branch out to other switches .

Step 3: Connect Devices

• Use Ethernet cables to connect PoE devices (IP cameras, access points, VoIP phones) to the PoE switch. The same cable will carry both power and data .
• For multiple switches, follow your chosen topology to interconnect them, ensuring the power budget and data capacity are sufficient .

Step 4: Configure the Switch (for Managed Switches)

• Enable PoE on each port if required.
• Monitor power usage to prevent overloading.
• Configure VLANs, QoS, and link aggregation if needed for traffic management and network efficiency .
• Test connectivity and power delivery to all devices.

Step 5: Best Practices

• Centralized Power Management: Managed PoE switches allow remote monitoring and power cycling of devices, improving reliability .
• Scalability: Plan for future expansion by leaving spare ports and considering higher power budget switches .

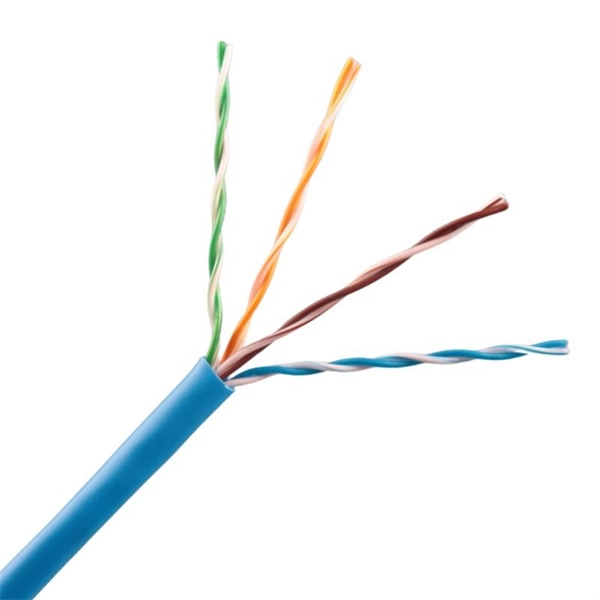

• Cable Quality: Use high-quality Ethernet cables (Cat5e or higher) to ensure stable power and data transmission . By following these steps, you can build a reliable and scalable PoE network that efficiently powers and connects all your devices while minimizing cabling complexity and installation costs .
