Analysis Chart of Advantages and Disadvantages of Fiber Optic Pigtails

Fiber optic pigtails offer high reliability, factory-terminated connectors, and flexible splicing options, but they can involve signal loss, environmental sensitivity, and complex installation.

Overview of Fiber Optic Pigtails

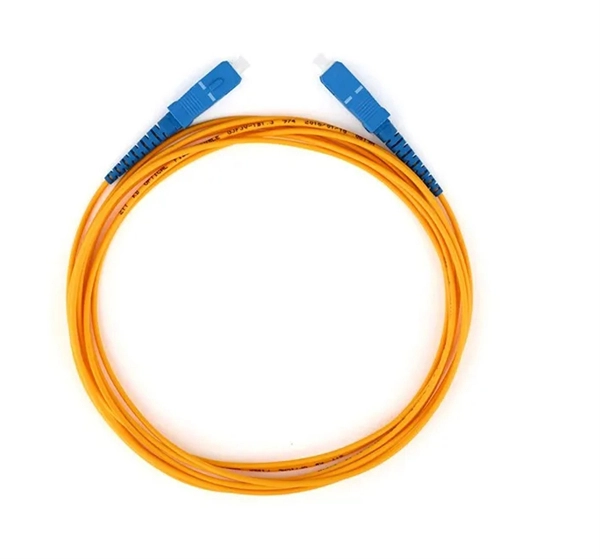

A fiber optic pigtail is a short optical fiber with a pre-terminated connector on one end and a bare fiber on the other, designed for fusion or mechanical splicing to a main fiber cable in the field . They are widely used in optical distribution frames (ODFs), terminal boxes, and patch panels, providing a permanent, high-quality connection between fibers . Pigtails differ from patch cords, which have connectors on both ends and are intended for device-to-device connections .

Advantages of Fiber Optic Pigtails

1. High Performance and Reliability: Factory-polished connectors ensure low insertion loss and high return loss, outperforming field-terminated connectors .
2. Flexibility in Network Design: Pigtails can be spliced to any fiber cable, allowing scalable and adaptable network configurations .
3. Time and Labor Savings: Pre-terminated connectors reduce the need for skilled on-site termination, speeding up installation .
4. Durability: Made from robust materials, pigtails can withstand mechanical stress and environmental conditions when installed in protective enclosures .
5. Variety of Types: Available in single-mode, multimode, polarization-maintaining, armored, waterproof, and ribbon types, suitable for different transmission distances and applications .
6. Cost-Effectiveness for Permanent Installations: Pigtails are more economical than field-terminated connectors for large-scale or permanent deployments .

Disadvantages of Fiber Optic Pigtails

1. Signal Loss Potential: Fusion or mechanical splicing introduces some insertion loss, which can affect overall network performance if not done correctly .
2. Environmental Sensitivity: Bare fiber ends are delicate and require protective enclosures; exposure can lead to damage or performance degradation .
3. Limited Length: Typically 0.5–2 meters, which may restrict flexibility in certain installations .
4. Complex Splicing Process: Fusion splicing requires specialized equipment and trained personnel, while mechanical splicing, though faster, may result in higher insertion loss .
5. Testing Challenges: Field testing of pigtails can be more difficult compared to patch cords, especially in large-scale deployments .

Practical Considerations

• Single-mode vs Multimode: Single-mode pigtails are ideal for long-distance, high-bandwidth applications, while multimode pigtails suit short-distance LAN or data center connections .
• Splicing Method: Fusion splicing provides lower loss and higher reliability, whereas mechanical splicing is faster and more cost-effective for temporary or emergency repairs .
• Application Environment: Pigtails are best used in controlled environments like ODFs or splice closures, not in open routing areas where patch cords are more suitable .

Conclusion

Fiber optic pigtails are essential for high-performance, permanent fiber terminations, offering factory-grade connectors, flexibility, and durability. However, they require careful handling, proper splicing, and protective installation to mitigate signal loss and environmental risks. Choosing the right type, splicing method, and installation environment is critical to maximizing their advantages while minimizing disadvantages .
