Fiber Optic Cable for Surveillance Pole

Proper handling and installation of fiber optic cables on surveillance poles ensures signal integrity, mechanical protection, and long-term reliability.

Cable Selection

For surveillance systems on poles, single-mode fiber cables are generally preferred due to their higher bandwidth and longer transmission distances, especially when connecting multiple IP cameras or covering distances over 2 km . Outdoor-rated cables with PE sheaths provide UV resistance and weather protection, while self-supporting cables like ADSS or Optix are suitable for aerial deployment without additional conduits . Ensure the cable type matches the equipment (single-mode for single-mode devices, multimode for multimode devices).

Handling and Preparation

Fiber optic cables are fragile and require careful handling:

• Inspect cables for damage before installation and ensure the environment is safe from traffic or foot traffic .
• Unwind cable drums vertically to prevent twisting .
• Avoid sharp edges and maintain the minimum bending radius, typically 20 times the cable's outer diameter .
• Use pulling socks when hoisting cables to prevent stress on connectors and fan-out assemblies .
• Clean connectors with optical-grade wipes and solvents to prevent signal loss; never touch the ferrule with bare hands .

Installation on Poles

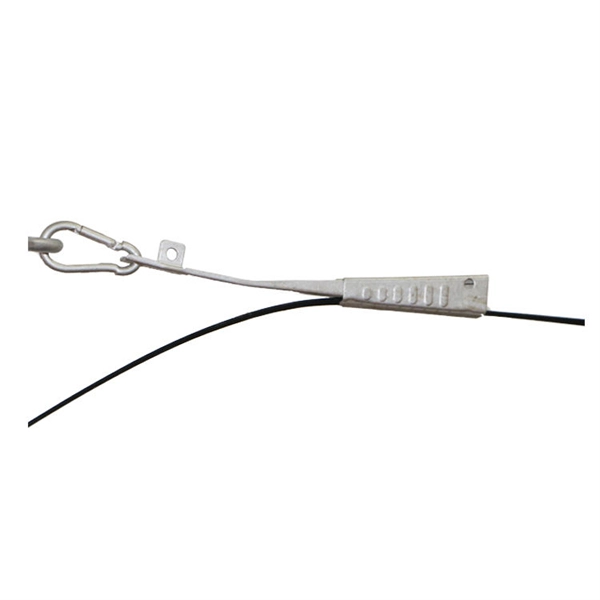

• Attach cables with clamps that distribute pressure over a large surface area to avoid pinching .
• Secure cables every 1 meter (3 ft.) to prevent sagging and mechanical stress .
• Plan splice points and slack storage in advance to allow maintenance and future expansion .

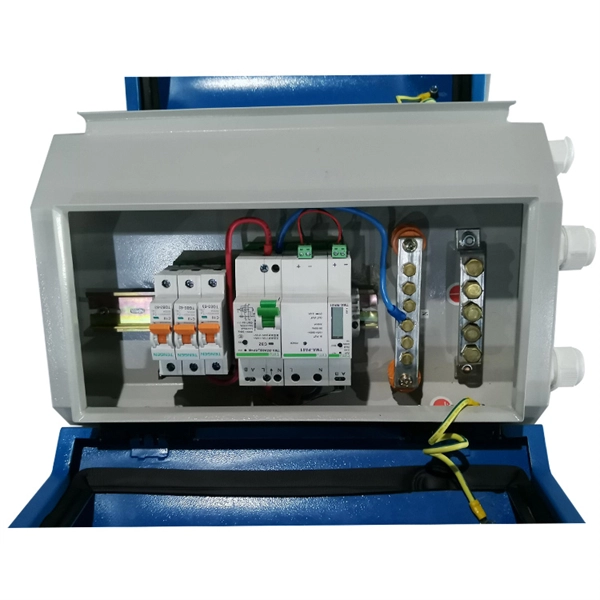

• Use waterproof junction boxes for camera connections to protect against moisture and environmental exposure .

Integration with Surveillance Systems

• For PoE cameras, fiber media converters or PoE fiber switches can extend distances beyond the 100-meter copper limit while providing power to cameras .
• Ensure compatibility between fiber type and transmission equipment to avoid attenuation or signal mismatch .
• Consider mechanical protection for cables near high winds or potential physical impact, using conduits or protective sleeves if necessary .

Safety Considerations

• Avoid looking directly into fiber optic outputs or laser sources, as they can cause eye injury .
• Follow all local regulations and obtain necessary permits for pole attachments and aerial installations . By following these guidelines, fiber optic cables for surveillance poles can be installed safely, maintain high signal quality, and provide reliable long-term operation.
