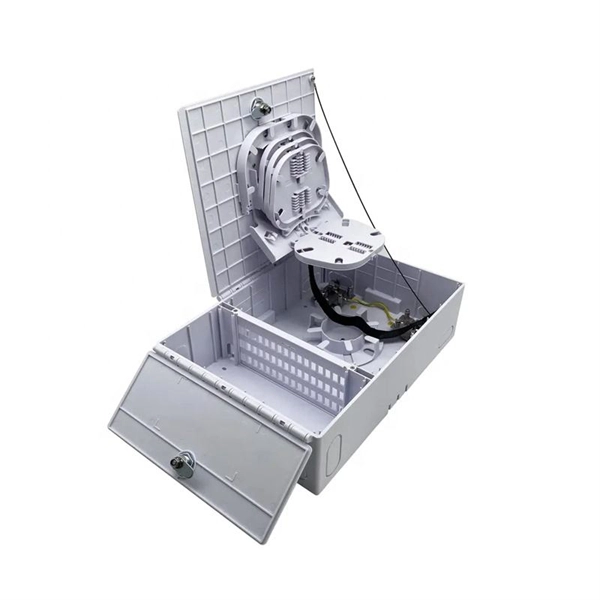

Initial Design of Outdoor Distribution Box

Designing an outdoor distribution box requires careful consideration of weatherproofing, load capacity, safety, material selection, and compliance with electrical standards.

Key Design Considerations

Weatherproofing and Environmental Protection: Outdoor distribution boxes must withstand rain, dust, UV exposure, and temperature extremes. Enclosures should meet NEMA or IP ratings appropriate for the environment, such as NEMA 3R/4/4X or IP65 for wet or coastal areas. Materials like ABS plastic, aluminum alloys, or stainless steel (SS304/SS316) are commonly used, with UV stabilizers or powder coatings to enhance durability and corrosion resistance . Load Capacity and Electrical Requirements: Determine the total power demand, including continuous and intermittent loads, to size the box and busbars correctly. NEC Article 312 requires proper overcurrent protection, main disconnects for systems over 100A, and separate grounding and neutral bars. Branch circuits should be sized at 125% of continuous loads to ensure safety . Safety Features: Incorporate circuit breakers, fuses, GFCI or AFCI protection, and robust grounding systems. These features mitigate risks from overloads, short circuits, and electrical faults, ensuring compliance with safety codes and protecting connected equipment . Layout and Modularity: Optimize internal layout to minimize cable lengths, reduce power loss, and separate different voltage levels. Modular designs allow for future expansion, easy maintenance, and component replacement without reconfiguring the entire system . Functional Requirements: Include necessary modules such as contactors, energy meters, and monitoring devices based on the application. Ensure compatibility with transformers, circuit breakers, and other electrical equipment for seamless integration . Installation and Maintenance: Design for surface mounting with corrosion-resistant fasteners, adequate depth for conductor bending, and easy access for inspection and maintenance. Proper gasket sealing and ventilation are essential to prevent moisture accumulation and overheating . Customization and Scalability: Consider site-specific factors such as environmental conditions, spatial constraints, and future load growth. Custom configurations can include the number of cable entries, breaker positions, and enclosure size to match operational requirements . By addressing these factors, an outdoor distribution box can provide safe, reliable, and long-lasting power distribution in challenging outdoor environments while remaining compliant with electrical codes and adaptable to future needs.
